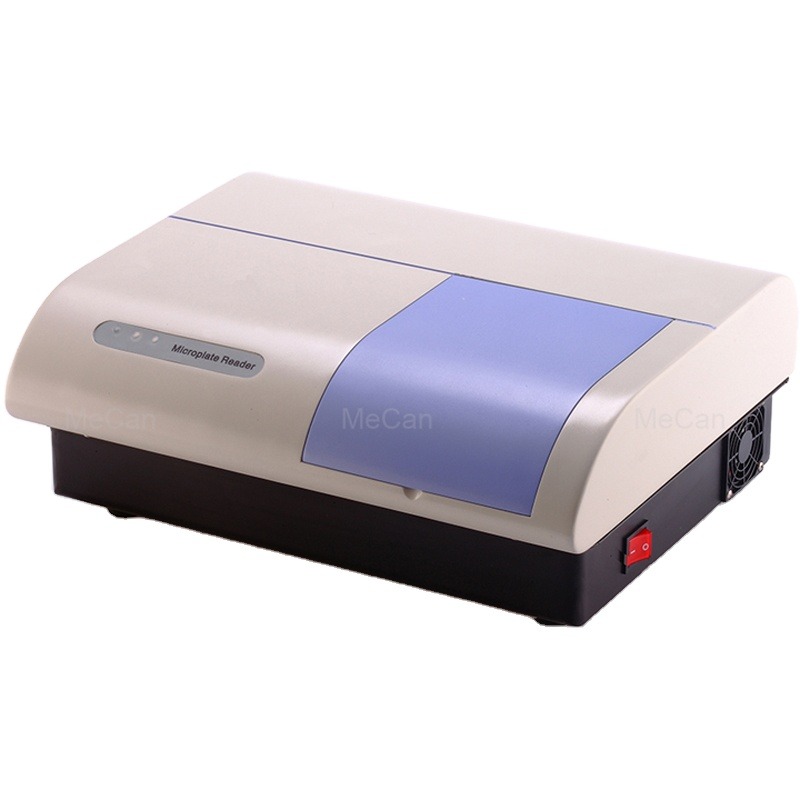

Elisa Analyzer Elisa Reader, Elisa Medical Machine MCL-201/202

Elisa Analyzer Elisa Reader,Medical Elisa Machine

Model:MCL- 201

10.4 inch color LCD

96-well plate(U,V,or plat-bottom)

Wavelength:405nm,450nm,492nm,630nm

Large storage for 1000 test item and 1,000,000 results

Click here for more information !!!

What is the detail of our MCL-201 ELISA Reader?

Feature:

• Windows operation interface, figure button, mouse operation
• 96-well plate, multiple tests in the single plate.
• Arrangement of Test item in micro-plate can be store and re-use
• Parameter can be modified and stored
• Plate shaking, speed and time adjustable
• Open system, test item and parameters can be added or modified.
• Large storage for 1000 test item and 1,000,000 results
• 10.4 inch color LCD
• Printing comprehensive report,include hosiptal and patient information and test results
• Built-in portable computer, easy to use.

Specifications:

Microplate types: 96-well plate(U,V,or plat-bottom)

Wavelength:405nm,450nm,492nm,630nm,4 free positions for additional filters

wavelength accuracy < 2nm

Reading range:0.000-4.000 Abs

Measurement range: 0.000-3.000Abs

Light source:Tungsten Halogen,12V/20W,>2000 hours

Measuring system:8-channel optical system

Test mode : End-point, kinetic, Multi-wave analysis

Resolution <1% or ±0.001Abs

Stability: <±0.005Abs/10min

Well Coincidence:≤0.015A

Linearity: r > 0.999

Repeatability: < 0.3%

Reading speed : 5s single wavelength , 10s double wavelength

QC:Westguard Multi-rule,automated QC alert.

Self-Checking function : Self-checking and calibration function.

CPU: High-speed CPU

Printer: External jet printer, multi-form patient report.

Interface :RS232 interface,USB, and PC connection.

Power supply: 220VAC 15% or 110VAC 15%50-60Hz 100w

Work environment: Temp 5℃—40℃;Humi ≤85%;

Machine Dimension: : 43CM*34CM*16CM

Weight : 9 KG

Click here for more information !!!

More Pictures of our MCL-201 ELISA Reader ?

Click here for more information !!

Another model of our Elisa Reader

Model:MCL-202

External large LCD color screen

96-well plate(U,V,or plat-bottom)

Wavelength:405,450,492,630nm

Large storage for 1000 test item and 1,000,000 results

Click here for more information !!!

More Pictures of our MCL-202 ELISA Reader ?

Feature:

• Windows operation interface, figure button, mouse operation
• 96-well plate, multiple tests in the single plate
• Arrangement of Test item in Micro-plate can be store and re-use
• Plate shaking, speed and time adjustable
• Open system, test item and parameters can be added or modified.
• Large storage for 1000 test item and 1,000,000 results
• External large LCD color screen,
• Printing comprehensive report,include hosiptal and patient information and test results
• External computer, easy to use.

Specification:

Microplate types: 96-well plate(U,V,or plat-bottom)

Test mode : End-point, kinetic, Multi-wave analysis

Light source:Tungsten Halogen,12V/20W,>2000 hours

Measuring system:8-channel optical system

Wavelength:405,450,492,630nm, 4 more filters optional.

Measurement range: 0-4.00Abs

Resolution : 0.001Abs(display),0.0001Abs(Inner counting )

Stability: <±0.005Abs/10min

Sensitivity≥0.01L /mg

Linearity: r > 0.999

Repeatability: < 0.3%

Reading speed : 5s single wavelength , 10s double wavelength

QC:Westguard Multi-rule,automated QC alert.

Self-Checking function : Self-checking and calibration function.

Printer: External jet printer, multi-form patient report.

CPU: High-speed CPU

Interface :RS232 interface,USB, PSTN and PC connection.

Power supply: 220VAC 15% or 110VAC 15%50-60Hz 100w

Work environment: Temp 5℃—40℃;Humi ≤85%

Size : 43CM*34CM*16CM

Weight : 7 KG

Work station configuration:

Elisha Reader One Unit

PC computer One set

Data processing software One set

External Printer One Unit

More Pictures of our MCL-202 ELISA Reader ?

If you also want the Elisa washer,please clinic the picture to got more information!
