Name: Low Price Elisa Microplate Washer And Elisa Microplate Reader Machine AE-APW-100
Brand: Low Price Elisa Microplate Washer And Elisa Microplate Reader Machine AE-APW-100
SKU: AE-APW-100,AE-AMR-100,AE-FlexA-200
Price: 1 USD
Availability: InStock
Rating: 4.9 (186 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Type: Biochemical Analysis System

Model Number: AE-APW-100,AE-AMR-100,AE-FlexA-200

Instrument classification: Class I

Warranty: 1 Year

After-sale Service: Online technical support

Residual liquid: â‰¤0.5Î¼l

Washing heads: 1x8 or 1x12 heads

Plate types: Flat, U, V, C bottom

Washing volume: 50~2000Î¼l, increase by 50Î¼l

Washing method: Central two points multi points

Washing times: 99 times

Washing channels: 3

bottle: 3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle

Soaking and Shaking time: 19'59"

Number of wash protocols: up to 100

Βασικές πληροφορίες

Model Number: AE-APW-100,AE-AMR-100,AE-FlexA-200

Πληρωμής & Αποστολής Όροι

Packaging Details: Each piece will be packed in a standard carton box

Supply Ability: 50 Unit/Units per Month

Περιγραφή προϊόντων

Products Description

Elisa Microplate Washer & Elisa Microplate Reader

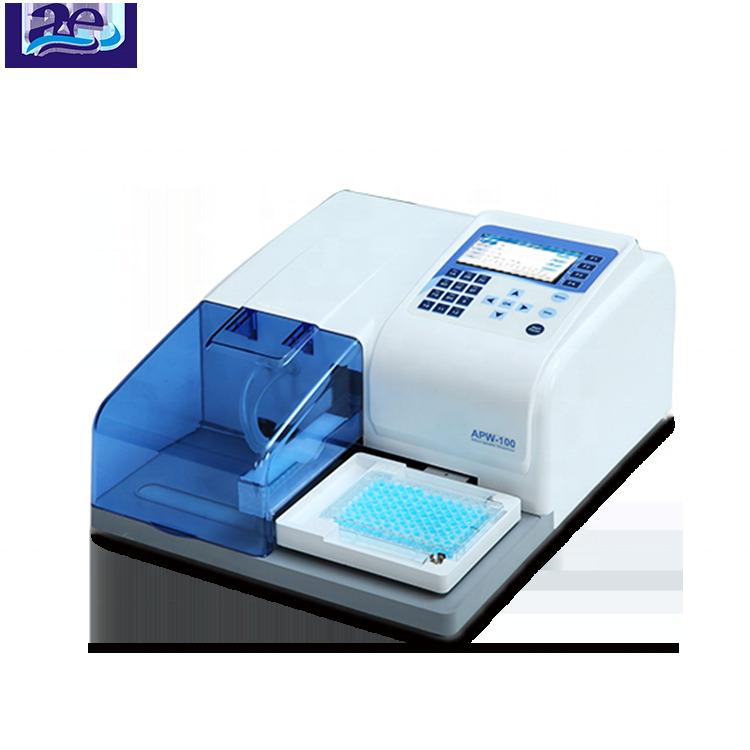

The APW-100 Microplate Washer is easy, convenient and versatile to use for washing microplate in ELISA assays. It efficiently remove liquid from wells. Low residual volumes eliminate high background signal to ensure reliable assay results. Washing performance can be optimized by adjusting wash parameters, such as wash cycles, soaking time, shaking speed, dispense and aspiration height and speed.

Safety and reliable feature:

The APW-100 is equipped with liquid position sensor to avoid the washing liquid used up or waste liquid from overflow, minimize the risk and avoid the liquid being sucked into the pump to break the equipment. Besides it has shaking function which can improve the washing efficiency. The APW-100 Microplate Washer has 4.3 inch LCD display with friendly interface, U-disk can be used to transfer the datas between the PC and the washer or between two washers, it can also be used to upgrade the software. The washing head can be replaced easily for different kinds of microplates.

Easy Operation:

The APW-100 has 4.3 inch LCD display with friendly interface, U-disk can be used to transfer the datas between the PC and the washer or between two washers, it can also be used to upgrade the software. The washing head can be replaced easily for different kinds of microplates.

The AMR-100 Microplate Reader, with a wavelength range of 340–750nm, is a high-performance solution for a wide range of applications, including immunoassays with colorimetric substrates, such as ELISA, and protein assays such as Bradford and Lowry. It is designed for applications within the clinical, biotechnology research and pharmaceutical laboratory. The AMR-100 can be used as a stand-alone reader or be controlled by a PC or a PAD with Android system. The AMR-100 Microplate Reader is a reliable and robust instrument for a wide variety of research and clinical applications. It reads various kinds of 96-wells plates, and is equipped with shaking function. It can be used as a stand alone instrument or under PC control with regular or APP software. It is easy-to-use the software. AMR-100 Microplate Reader is a 8-channel absorbance microplate reader that provides not only accurate, reproducible and fast measurements, but also offer innovative design with its easy-to-use control and data analysis software. It is ideal for a variety of ELISA applications in the biology laboratory.

Filters:

Software:

The AMR-100 Microplate Reader comes with four standard absorbance filters:405, 450, 492, and 630nm. We also supply custom filters at 5~9nm intervals from 340 to 750nm on request.

AMR-100 Highlights

It keeps with high visual and logical user interface of software, it can be offered a comprehensive inbuilt calculations, such as blank subtraction, quantitative curve fit, quanlitative classification and kinetic calculations, as well as the versatile reporting tool and make data reduction.

1. Easy of use with 7 inch touch screen together with 3 external keys 2. A broad wavelength range of 340-750nm 3. Able to use individually or connect with PC and export results or a PAD with Android system 4. Absorbance range: 0.0~4.000Abs

9. Wide applicability for life science and clinical laboratories

5. 8 positions optical filter wheel, equipped with 4 standard optical filters 6. Fast and accurate measurement of 96-well plates within 6 seconds 7. Convenient built-in shaker 8. Wide-format internal thermal graphical printer 10. Additional reference channel for optimized light intensity

13. PC software, APP software and bulit-in software for powerful and validated data analysis

11. Endpoint, kinetic and multi-label measurements for a variety of applications

12. Shaking with variable time and speed

FlexA-200 is a UV/Vis micro-plate spectrophotometer offering free wavelength selection, so being an ideal tool for virtually any photometric research application, such as DNA, RNA, protein analysis and more It offers exceptional usability through its intuitive, user-friendly internal software and comprehensive ReaderIt-II Software. FlexA-200 microplate reader has been designed to deliver high performance and high quality results with minimal user effort, It measures 96-and 384-well plates and plate shaking motion is linear

10 inch touch screen, and offers stand-alone operation, it is easy to use

Intuitive, user-friendly internal software on a 10 inch touch screen for quick measurements. Easy and logical assays setup for demanding assays with the powerful PC software (ReaderIt-II), the PC software can offer to analysis, review, validate data. It is easy access to data via USB interface and WIFI

Freely selectable wavelengths from 200 - 1000 nm for the demands of various assays

Both microplate reading for any throughput requirements

It measures 96-and 384-well plates

Flexibility and performance for various photometric applications

FlexA-200 microplate reader supports endpoint, kinetic and spectral scanning assays. It reads 96- and 384-well microplates with and without lids.A broad wavelength range with the UV area, pathlength correction as well as fast spectral scanning makes it an ideal tool for any photometric research application, including DNA, RNA and protein analysis

Features & Specification

Features:

APW-100:

1. Low residual liquid, each well ≤0.5μl

2. Compatible for microplates: flat, U, V, C bottom

3. 4.3 inch color LCD display, easy to operate

5. Wash parameters can be set to make sure the best washing effect

4. Washing head position can accurate to 0.1mm

8. Uniform volume mark make it easy to measure the liquid

6. Support external U-disk, for program exporting 7. 100 programs can be saved

10. Strainer in the pipeline and automatic washing functions avoid the liquid blocking the pipeline

9. Automatic alarm for full liquid

Technical Specifications:

Microplate Washer :

Model	APW-100
Residual liquid	≤0.5μl
Washing heads	1×8 or 1×12 heads
Plate types	Flat, U, V, C bottom
Washing volume	50~2000μl, increase by 50μl
Washing method	Central two points multi points
Washing times	99 times
Washing channels	3
bottle	3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle
Dispense accuracy	CV≤2.0% at 300μl (CV≤1.5% for 96 wells)
Soaking and Shaking time	19’59”
Number of wash protocols	up to 100
Data connection	USB
Dimensions(W x D x H)	345 x 460 x 200 mm
Weight	11.5kg
Power supply	AC100/240V, 50/60Hz

Microplate Reader :

Model	AMR-100
Display	7 inch touch screen (800x480 dots)
Light source	Quartz-halogen lamp 6V/10W
Wavelength	340-750nm
Optical filter	Equipped with filters: 405,450,492,630nm
Half-bandwidth of filters	3~9nm
Read-out range	0~4.000Abs
Linearity (405nm)	0~2.000Abs ≤±1%, 2~4.000Abs ≤±2%
Resolution	0.001Abs
Accuracy (405nm)	±1% (0-3Abs), ±2% (3-4Abs)
Precision(405nm)	CV≤0.2% (0-3Abs), CV≤1.0% (3-4Abs)
Test speed	<6s for 96 wells plate
Incubator	No
Shaking	3 modes shaking: slow, medium and fast
User interface	Integrated software or PC control software
Operation	Touch screen, 3 pcs external keys
Storage	200 programs and 100,000 test records
Ports	3 USB ports, for PC, printer and USB-disk
Dimensions(W x D x H), weight	440 x 295 x 225 mm, 10kg

Model	FlexA-200
Display	10 inch touch screen
Light source	Quartz-halogen lamp
Wavelength range	200 - 1000 nm with 1 nm steps
Wavelength Accuracy	±2 nm
Tepetition	±0.2 nm
Wavelength selection	Monochromator
Read-out range	0 - 4.0 OD
bottle	3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle
Half-bandwidth of filters	<2.5 nm
Detector	two silicon photoelectric detector, one for measurement, another for reference
Linearity @450nm	0 - 2.5 Abs，±2% (96 well plates)
Accuracy @450nm	1.0% + 0.005 Abs (0 - 2.0 Abs)；2.0% [2.0 - 2.5 Abs)
Precision @450nm	CV < 0.5% accurate model；CV < 1.0% fast mode
Test speed	10 seconds with 96-well plate (fast mode); 30 seconds with 96-well plate (accurate model)
Plate shaking	Linear; three options for speed
Test speed	15 seconds with 96-well plate (single wavelength); 30 seconds with 96-well plate (double wavelength)
Incubator	From ambient + 5℃to 45℃
UI	Integrated software or PC control software
Analysis software	ReaderIt-II
User interface	Touch screen, android system, 10 inch touch screen, external keyboard mouse
Storage	16G memory, more than 10,000 test records can be stored
Ports	3 USB ports, for PC, printer and USB-disk
Automated systems	Temporarily unable compatible with automated systems
Power supply	DC24V 6.5A
Dimensions(W×D×H)	300×500×290mm
Weight	15kg
