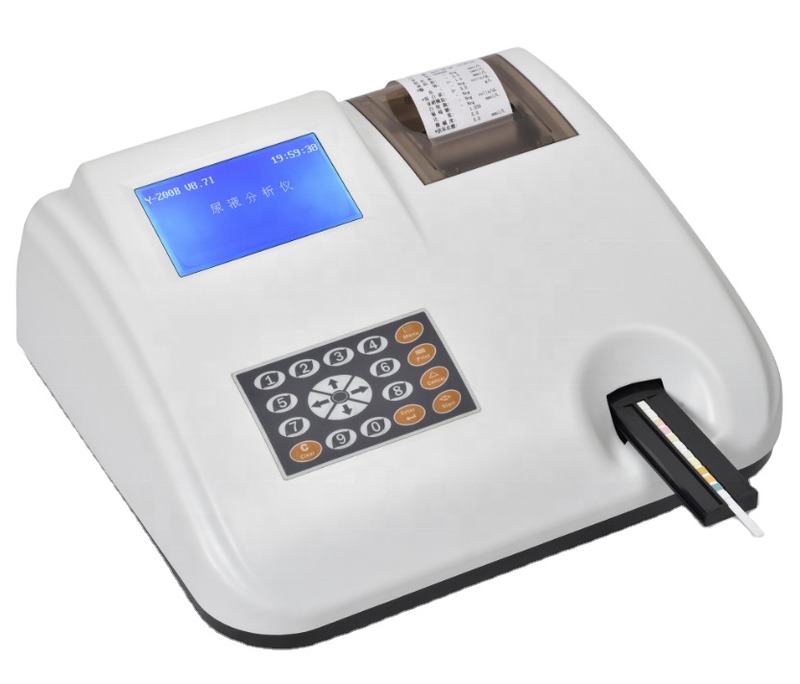

Veterinary Clinics Veterinary Analyzer For Urine Strips Animal Urinalysis Strips Analyzer

Urine Analyzer is a kind of semi-automatic photoelectric colorimeter that can be used together with the URS-10T, URS-11MA, URS-11-Ⅲ. It can provide a qualitative or semi-quantitative result for Urobilinogen, Bilirubin, Kentone, Blood, Protein, Nitrite, Leucocytes, Glucose, Specific gravity, pH, Ascorbate Acid and Micro Albumin of the urine sample according to the color change caused by the interaction between the reagent areas and the biochemical components in urine.
Adopting the advanced “High luminosity cold light source reflection determination” technology, Urine Analyzer gets the specialties of resisting the interference of the ambient light and has longer lifespan. It can finish the testes on 11 kinds of biochemical components in urine within 7 seconds, and it also can revise the affects toward the test result which is caused by ambient temperature,ambient light,acid-base scale and abnormally colored sample. It can also connect with the urine sediment analyzer.

Urine Analyzer is a kind of invitro diagnostic device (IVD) used by professionals.

Technical parameters

Testing Principle: super-high luminosity cold light source reflection testing principle
Testing Items: Leucocyte (LEU) Nitrite(NIT) Urobilinogen(URO) Protein (PRO) pH Blood (BLD) Specific Gravit (SG) Ascorbate( VC) Ketone(KET) Bilirubin (BIL) Glucose (GLU) Micro Albumin(MALB)
Matching Test Strip: URS-10T, URS-11
Light Wavelength : 420nm, 525nm, 560nm, 610nm, 660nm, 950nm
Testing Speed: 60 times/h for single testing, 120 times/h for continuous testing.
Data Memory: 1000 test results
Display Screen: 240mm*64mm 240mm*128mm
Printer: Thermal printer inside, with outer stylus printer interface
External Output: Connect with the computer through Standard RS232C port
Baud Rate of Data Communication Interface:9600bps
Language: English
Environment Condition 0~40℃:RH<85%
Power Supply AC 220V(±15%),50~60Hz
Fuse wire specification: 250V 2A
Power: ≤60W
Net: 4Kg
Vol. 355mm*300mm*145mm
